VACUUM PADS-Antistatic low impression
  • Vacuum Pads ZC Series
  • Vacuum Pads ZC Series
  • Vacuum Pads ZC Series

Vacuum Pads ZC Series

  • Vacuum Pads SMC ZC Series : pad with holder

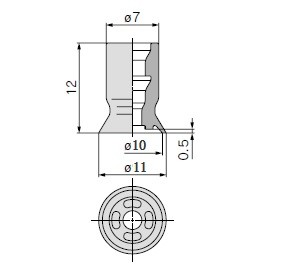

  • Specifications of Vacuum Pads: As in the following figure

  • Services: provide clients with various vacuum pad materials for use, such as projects like NBR, Silicone, VITON, FKM, conductive NBR, conductive silica gel, and anti-electrostatic ESD, to lift the rate of good products and improve the creases during the production etc. Welcome to contact us

Information

Model No D d H Note VACUUM PADS ZPC SIZE
ZC1-10 12 4.5  12 ZP10C
ZC1-13 15 4.5  12 ZP13C
ZC1-16 18 4.5  12.5 ZP16C
ZC1-20 23 6  14 ZP20C
ZC1-25 28 6  14 ZP25C
ZC1-32 35 6  14.5 ZP32C
ZC1-40 43 9  18.5 ZP40C
ZC1-50 53 9  19.5 ZP50C
