VACUUM PADS-Antistatic low impression
Vacuum Pads PF Series
-
CONVUM Vacuum Pads PF Series:Standard flat-type pads
-

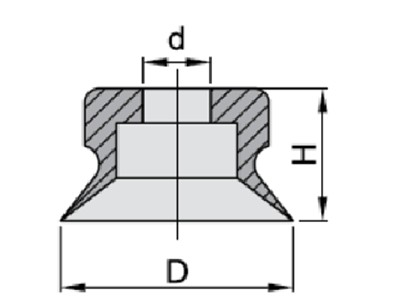

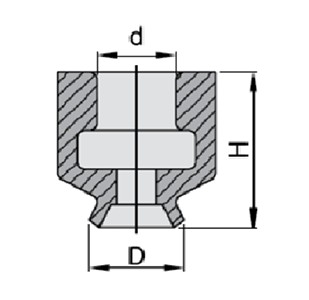

Specifications of Vacuum Pads: As in the following figure
-
Services: provide clients with various vacuum pad materials for use, such as projects like NBR, Silicone, VITON, FKM, conductive NBR, conductive silica gel, and anti-electrostatic ESD, to lift the rate of good products and improve the creases during the production etc. Welcome to contact us
Information
| Model No | D | d | H | Note |  |
||
|---|---|---|---|---|---|---|---|
| PF1-01.5A | 1.5 | 2 | 4 | PFG-1.5A | |||
| PF1-02A | 2 | 2 | 4 | PFG-2A | |||
| PF1-03A | 3 | 2 | 4 | PFG-3A | |||
| PF1-03.5A | 3.5 | 2 | 4 | PFG-3.5A | |||
| PF1-05A | 5 | 4 | 6.5 | PFG-5A | |||
| PF1-06A | 6 | 4 | 6.5 | PFG-6A | |||
| PF1-08A | 8 | 4 | 7 | PFG-8A | |||
| PF1-10A | 10 | 4 | 7.5 | PFG-10A | |||
| PF1-15A | 15 | 4 | 8 | PFG-15A | |||
| Model No | D | d | H | Note |  |
|---|---|---|---|---|---|
| PF1-15 | 15 | 4.6 | 8 | PFG-15 | |
| PF1-20 | 20 | 4.6 | 10 | PFG-20 | |
| PF1-25 | 25 | 6 | 14 | PFG-25 | |
| PF1-30 | 29 | 6 | 12 | PFG-30 | |
| PF1-35 | 35 | 6 | 14 | PFG-35 | |
| PF1-40 | 40 | 6 | 14 | PFG40 | |
| PF1-50 | 50 | 8 | 15 | PFG-50 | |
| PF1-120 | 120 | 14 | 25.5 | PFG-120 |
